DESCRIPTIONADDITIONAL INFORMATION

Parameter

Part No.:	630

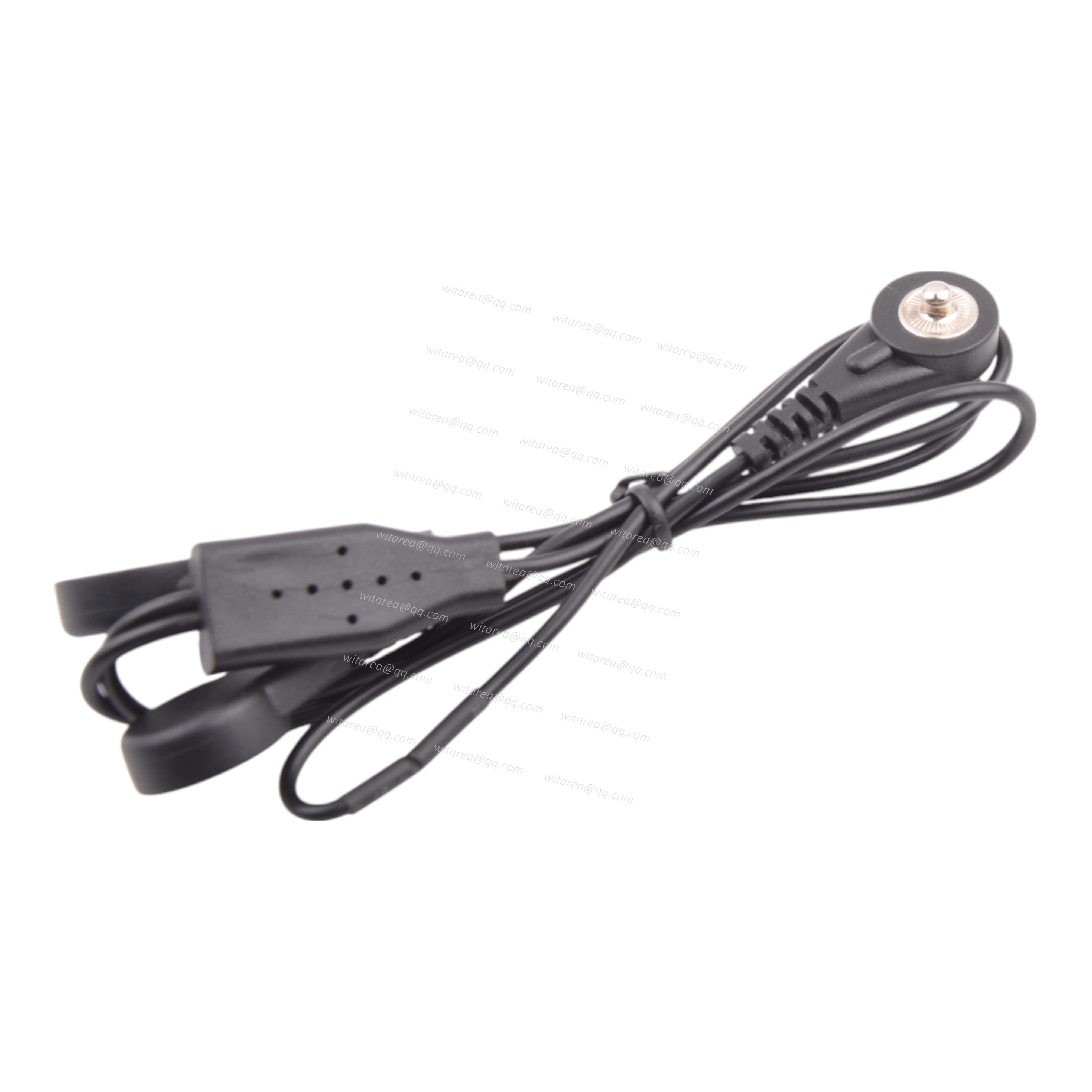

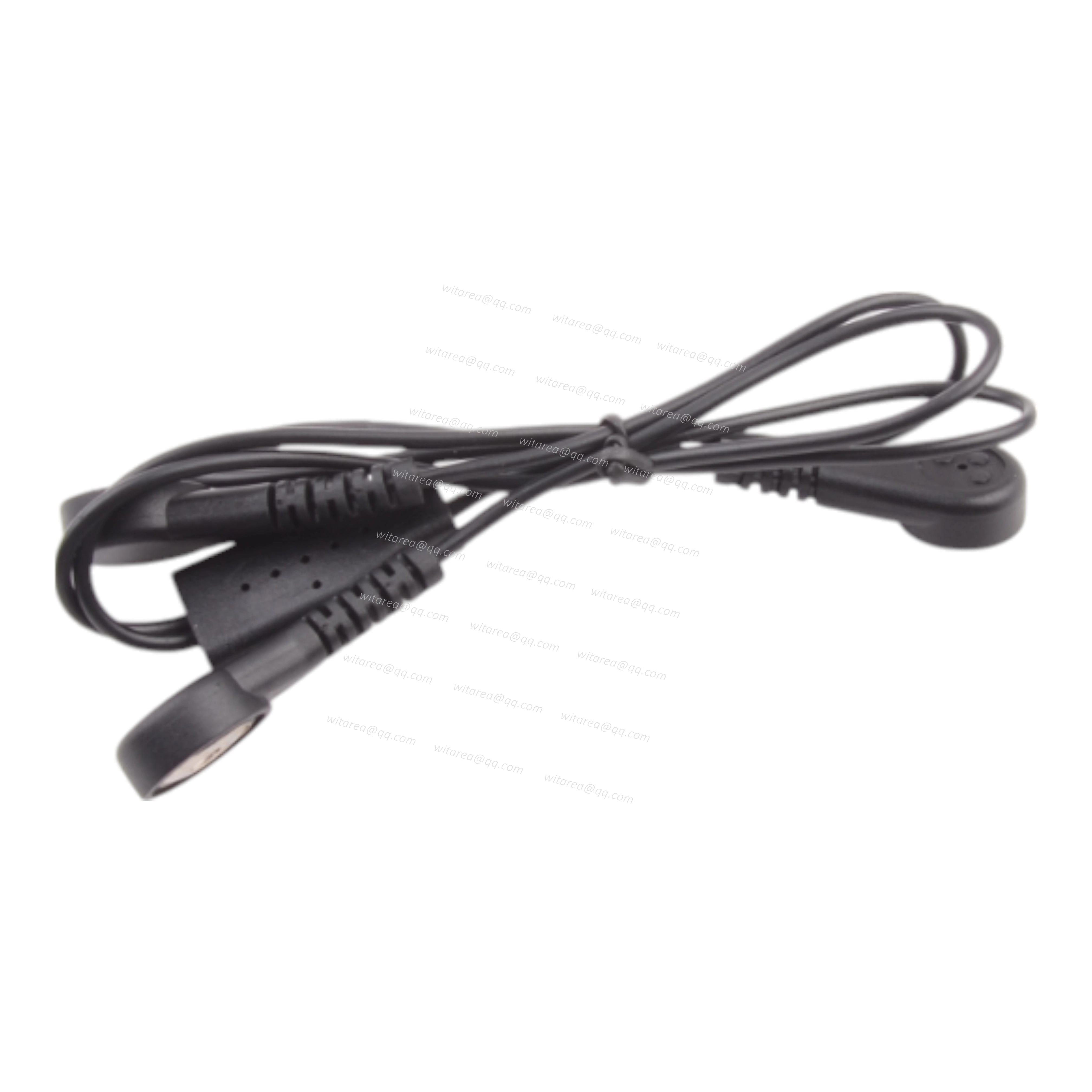

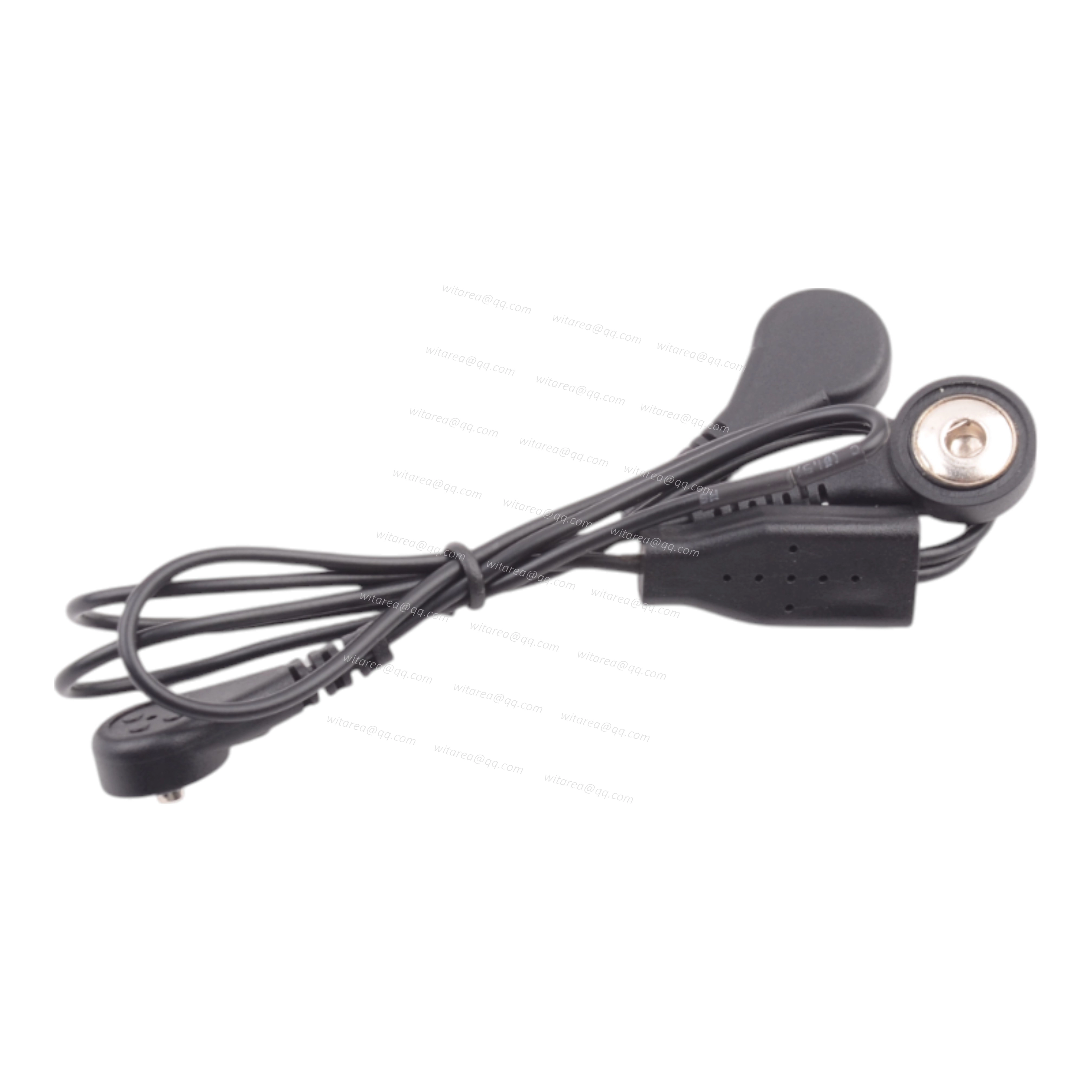

Products:	Electrode Snap male to dual Electrode Snap female cable
Cable type:	Medical Cable
Cable size:	Customizable
Cable Outer Diameter:	Customizable
Color:	Customizable
Length:	Customizable
Voltage Rating:	Please check the details below.
Current Rating:	Please check the details below.
Temperature Range:	-20~80℃
Waterproof Rating:	-
Applications or Use Cases:	Medical Devices
Product Status:	Active
Certification:	RoHS(EN50581),REACH
Packaging Specifications:	Individually Packaged

Application	Typical Working Voltage	Typical Working Current	Requirements for Electrode Snap Connector
EEG (Electroencephalography)	Microvolt level (±100–500 µV, up to a few mV)	Nanoampere level (≈ 0 nA, passive sensing)	Very low noise, high shielding, stable contact, low contact resistance
ECG / EKG (Electrocardiography)	Millivolt level (≈ 0.5–4 mV)	Microampere level (patient leakage current < 10 µA)	Reliable medical-grade contact, corrosion-resistant, low contact resistance
TENS (Transcutaneous Electrical Nerve Stimulation)	Typically 20–80 V peak (some devices up to ~100 V)	Typically 5–80 mA (limited for patient safety)	Must safely carry mA-level pulse current, good conductivity, strong mechanical strength
EMS / Massage Device	Typically 30–60 V peak	Typically 10–80 mA	Similar to TENS; requires stable snap connection, flexible cable, safe current capability

These TENS snap electrode splitter cables are used in electrotherapy applications to connect multiple electrode pads to a single lead wire, making them ideal for TENS therapy and pain management treatments. Perfect for clinics, physiotherapy centers, and home users seeking efficient and effective therapy sessions.

WEIGHT: 0.1 kg
