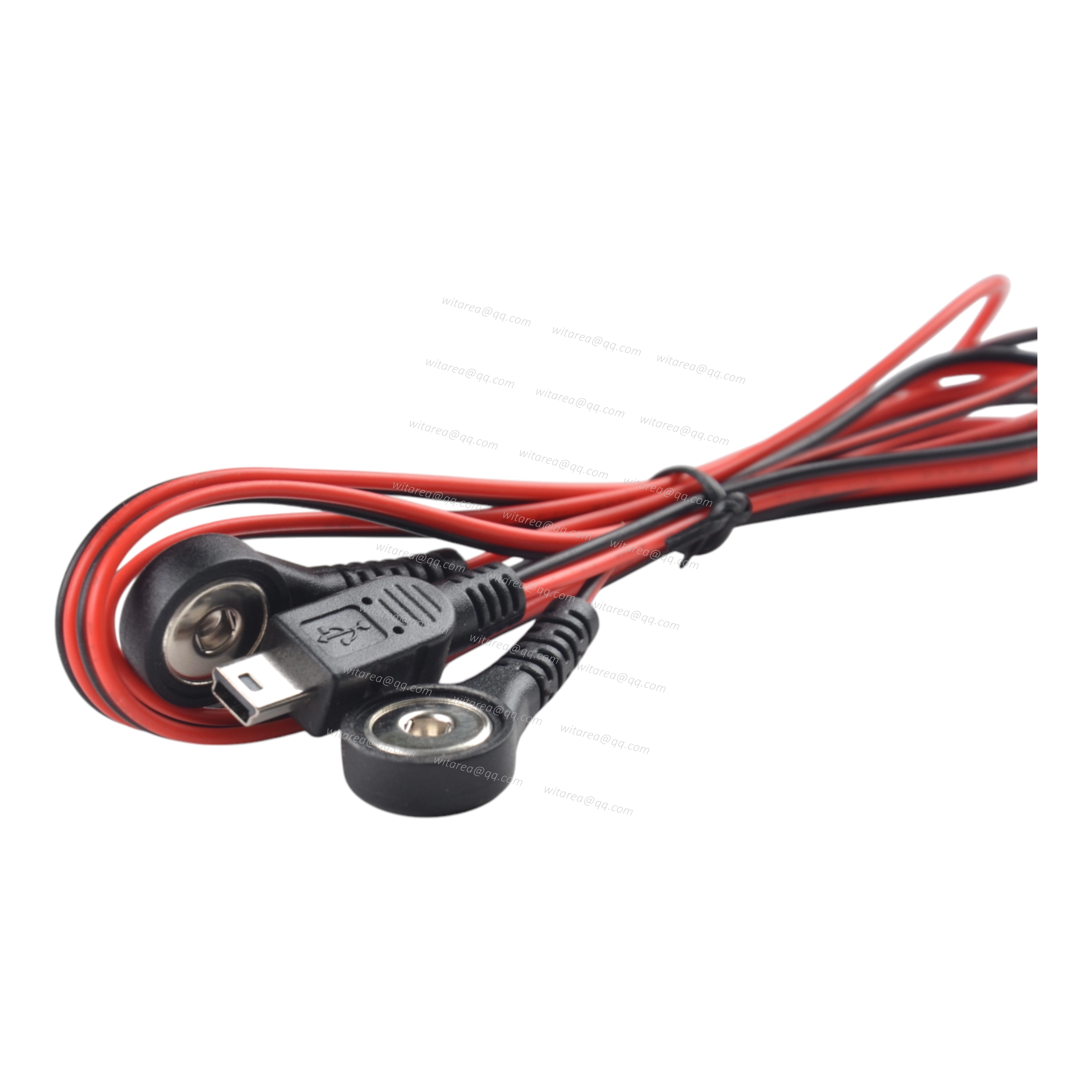

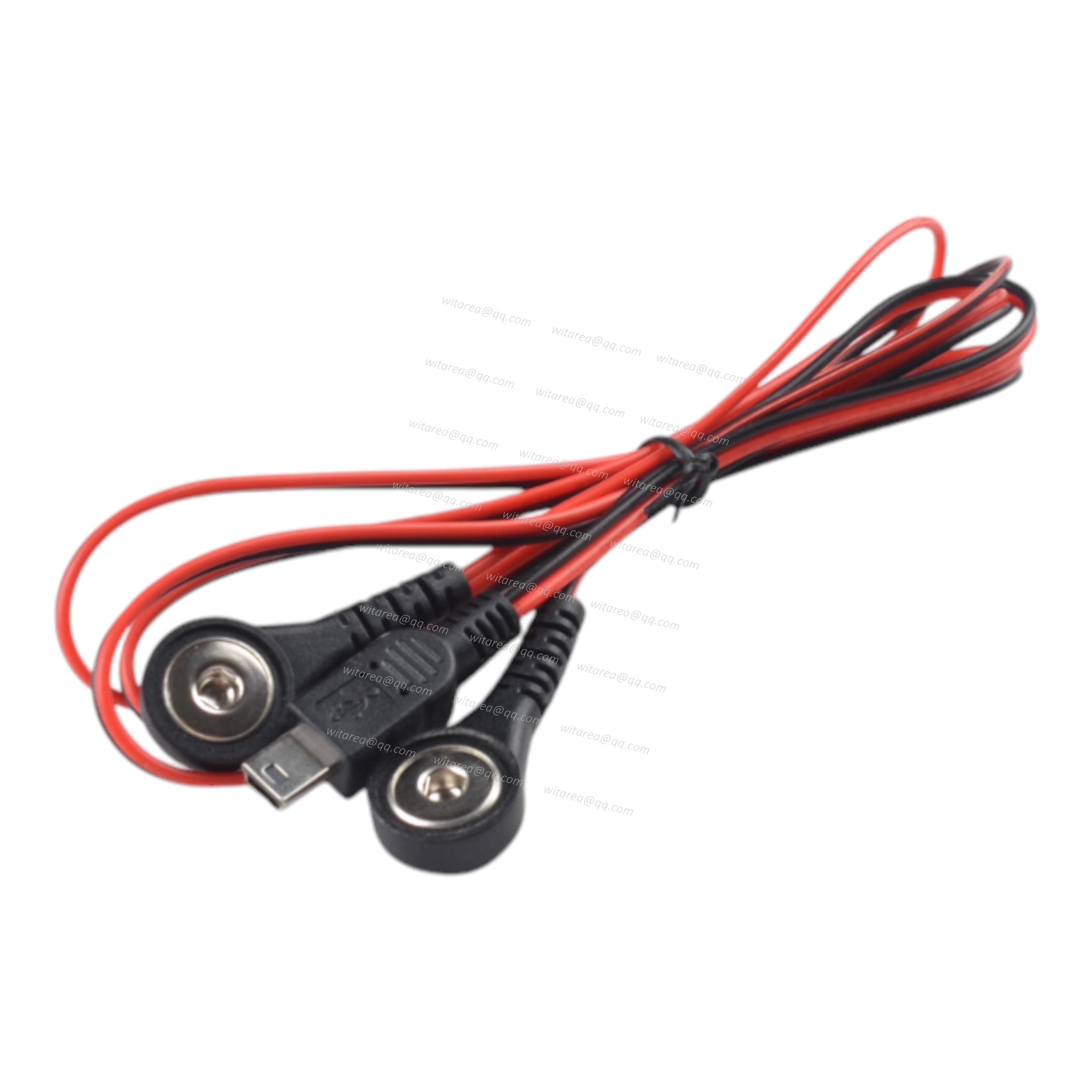

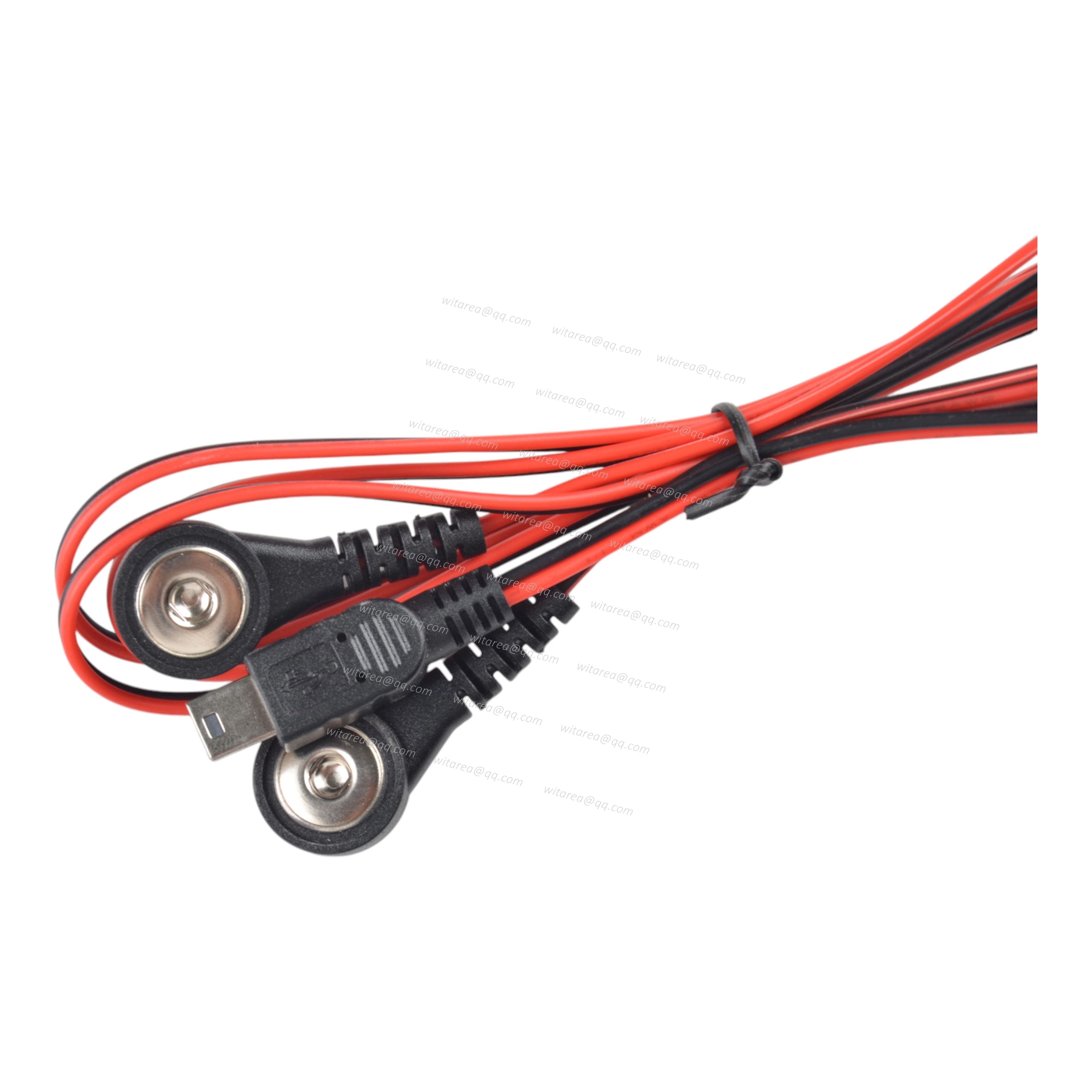

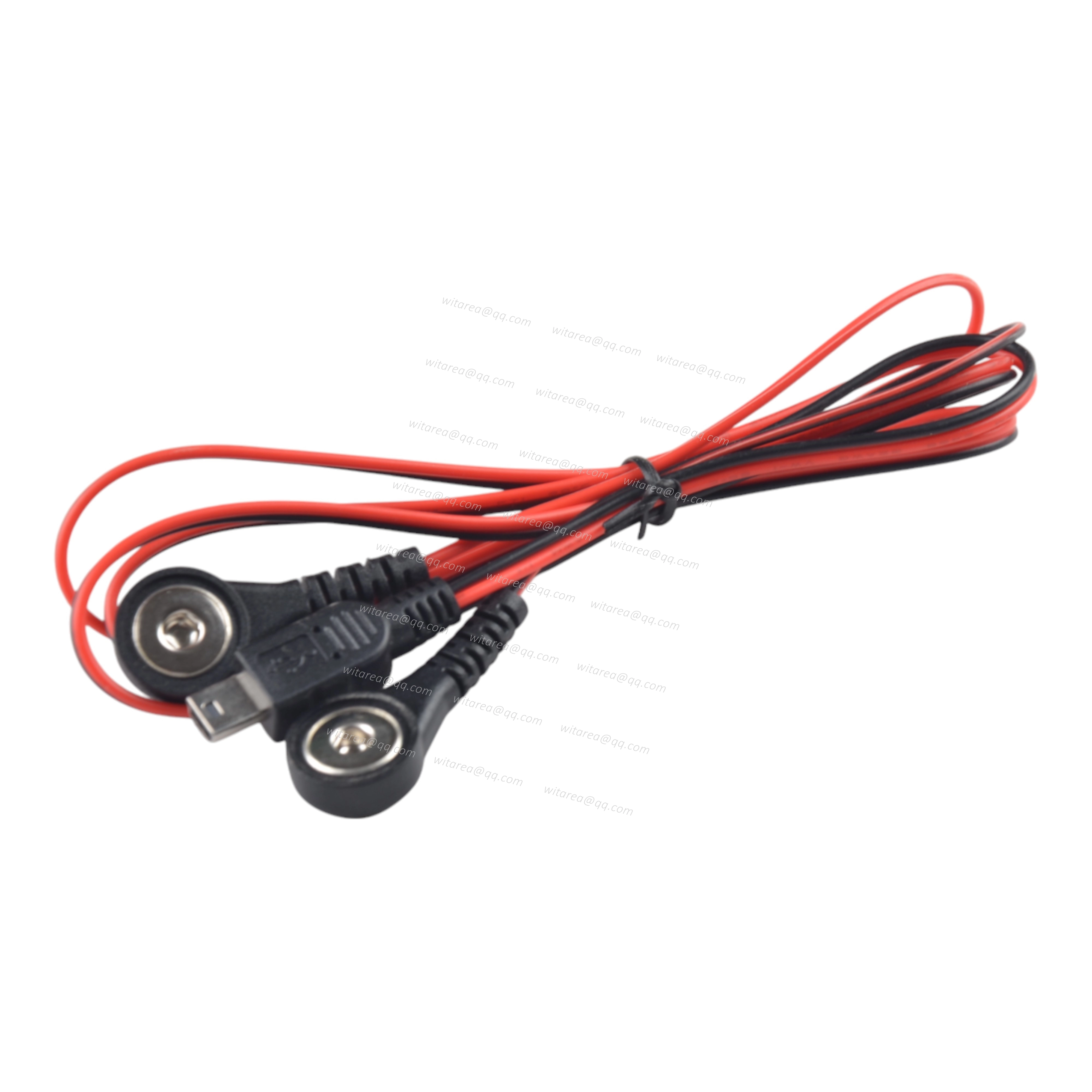

2-Lead electrode snap to USB Mini-B cable

Item.: 2-Lead Electrode Snap To USB Mini-B Cable
Connector 1: 2-Leads Electrode Snap
Connector 2: USB Mini-B
Wire spec.: UL cable
Custom over-molding design
Custom-designed and custom-built
CategoriesTENS/EMS Electrode Leadwires
Add To InquirySEND INQUIRY
DESCRIPTIONADDITIONAL INFORMATION

Parameter

Part No.: 351
Products: 2-Lead Electrode Snap To USB Mini-B Cable
Cable type: Medical Cable
Cable size: Customizable
Cable Outer Diameter: Customizable
Color:
 Customizable
Length: Customizable
Voltage Rating:  Please Refer To The Content Below
Current Rating: Please Refer To The Content Below
Temperature Range:
 -20~105℃
Waterproof Rating:
 -
Applications or Use Cases: Medical Devices
Product Status: Active
Certification: RoHS(EN50581),REACH
Packaging Specifications: Individually Packaged


Application Typical Working Voltage Typical Working Current Requirements for Electrode Snap Connector
EEG (Electroencephalography) Microvolt level (±100–500 µV, up to a few mV) Nanoampere level (≈ 0 mA, passive sensing) Very low noise, high shielding, stable contact, low contact resistance
ECG / EKG (Electrocardiography) Millivolt level (≈ 0.5–4 mV) Microampere level (patient leakage current < 10 µA) Reliable medical-grade contact, corrosion-resistant, low contact resistance
TENS (Transcutaneous Electrical Nerve Stimulation) Typically 20–80 V peak (some devices up to ~100 V) Typically 5–80 mA (limited for patient safety) Must safely carry mA-level pulse current, good conductivity, strong mechanical strength
EMS / Massage Device Typically 30–60 V peak Typically 10–80 mA Similar to TENS; requires stable snap connection, flexible cable, safe current capability
WEIGHT: 0.1 kg
