| Part No.: | 345 |
| Products: |

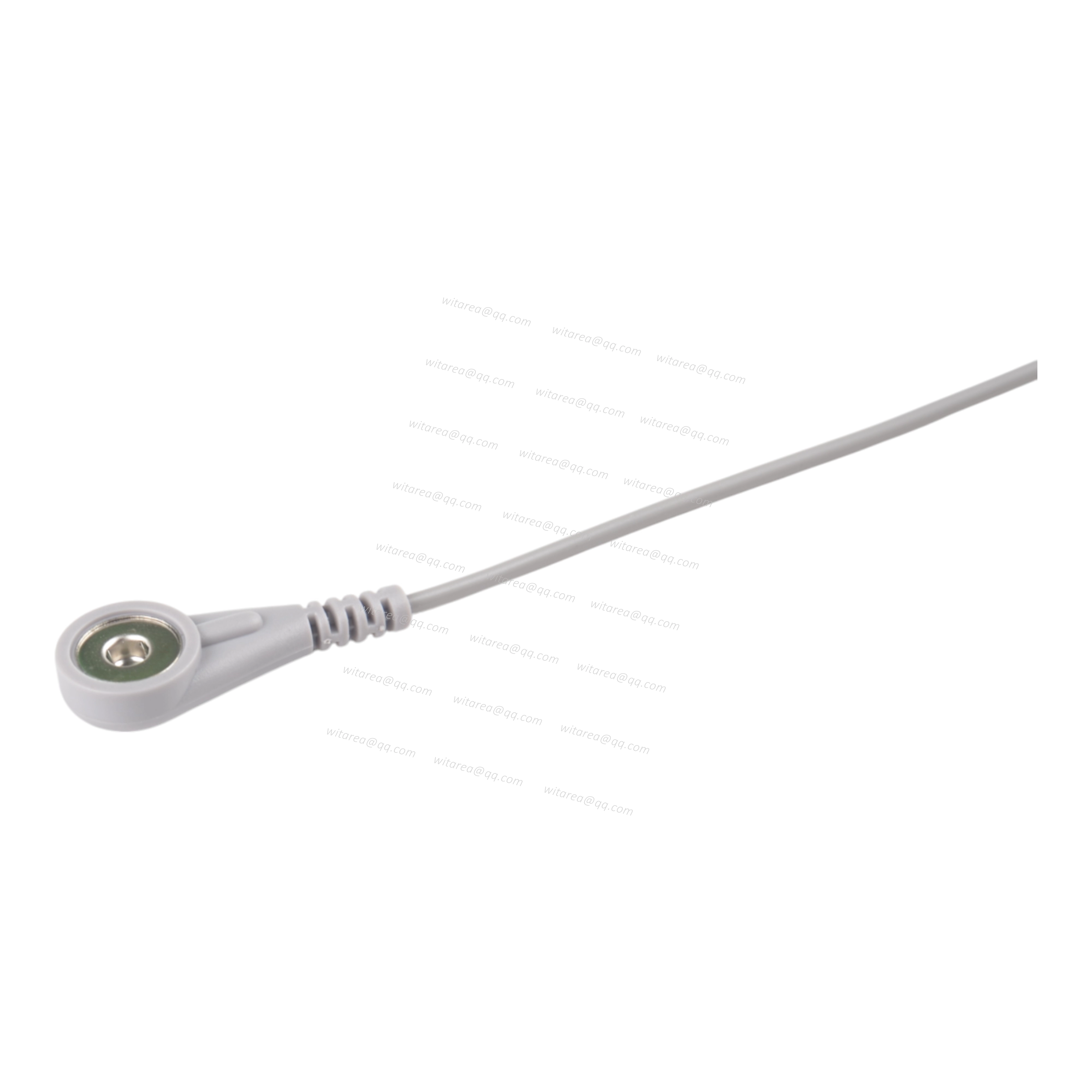

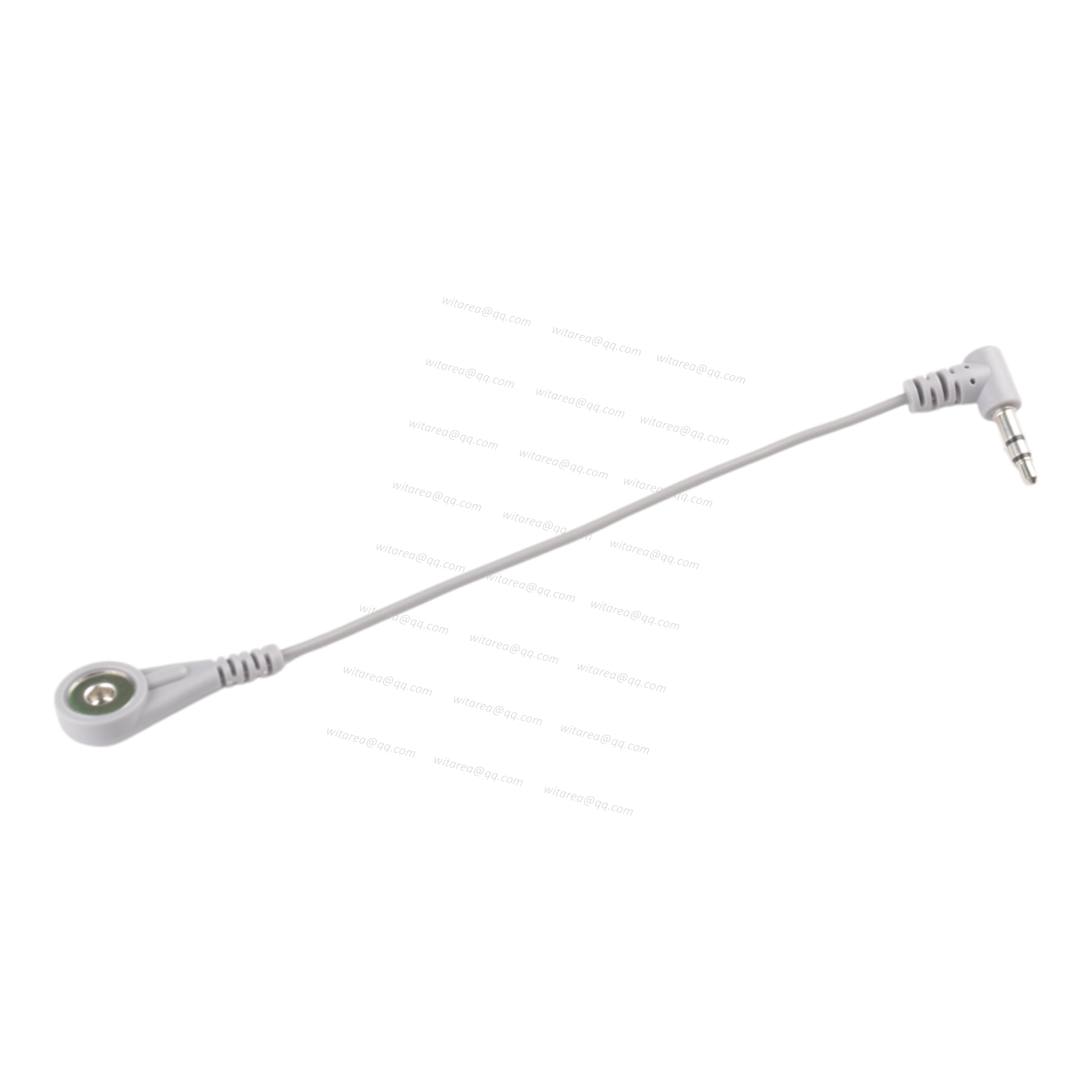

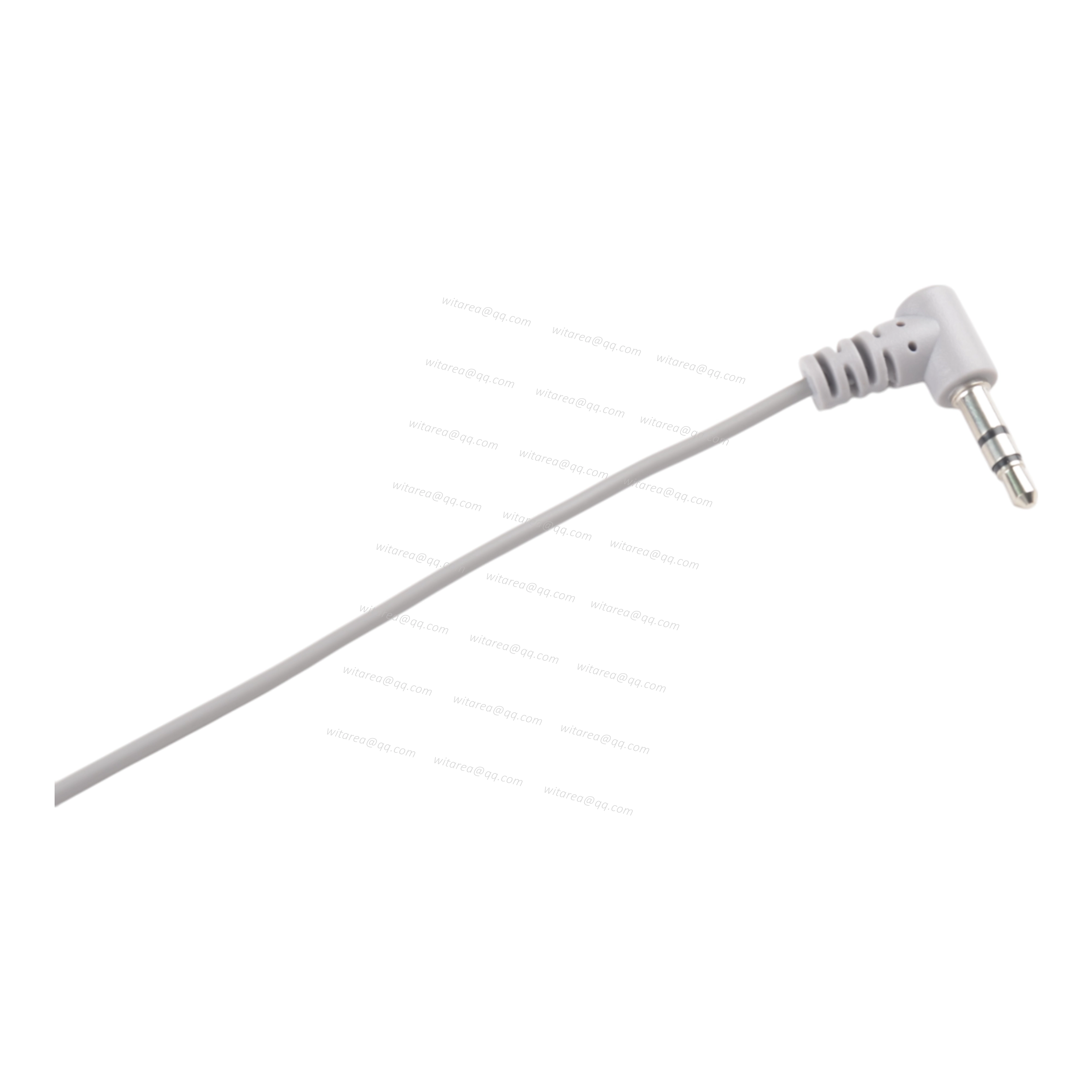

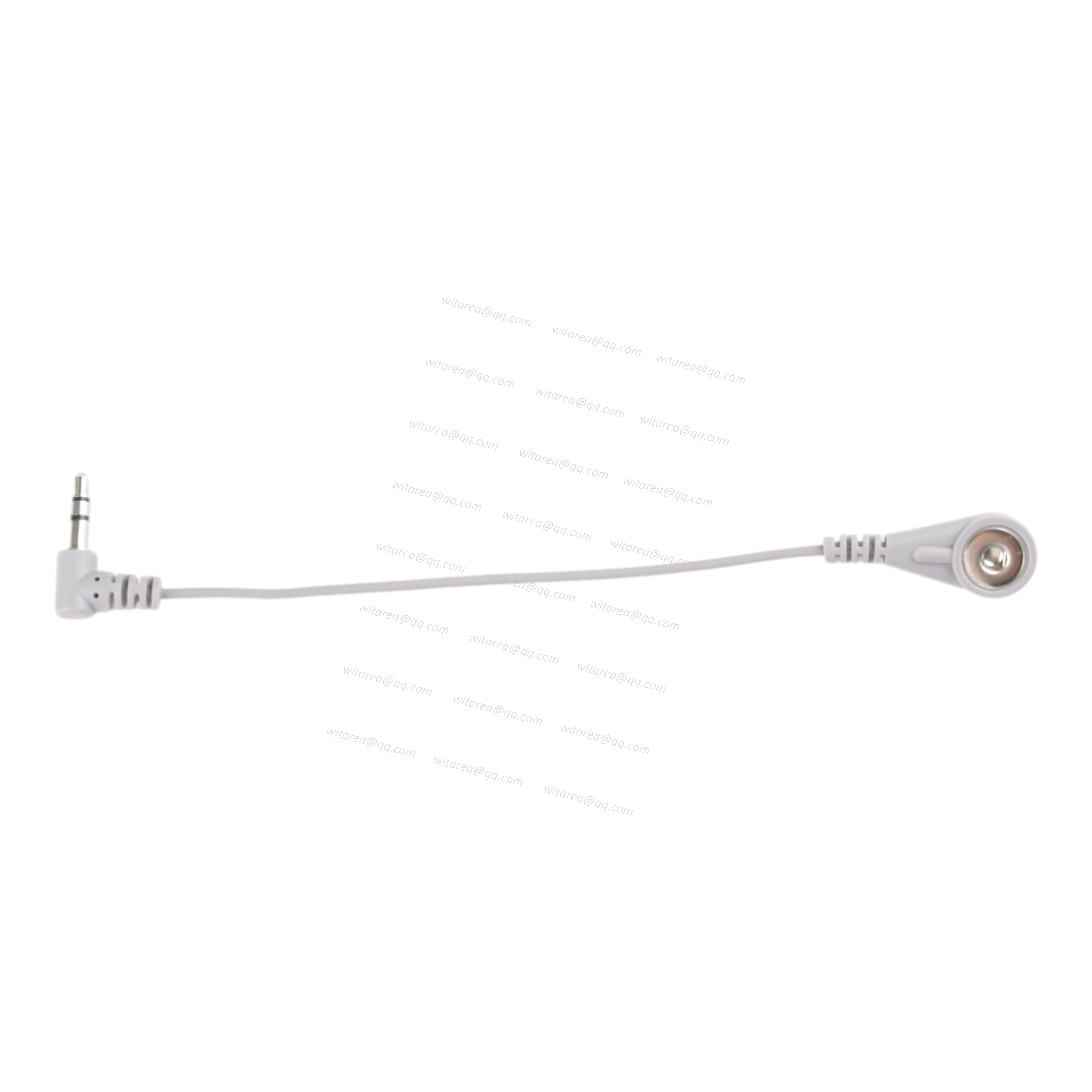

3.5mm Elbow Audio Jack To Electrode Snap Cable |
| Cable type: |
Medical Cable |
| Cable size: | Customizable |
| Cable Outer Diameter: | Customizable |
|
Color: |
Customizable |
| Length: |
Customizable |
| Voltage Rating: |
Please Refer To The Content Below |
| Current Rating: |
Please Refer To The Content Below |
|
Temperature Range: |
-20~105℃ |
|
Waterproof Rating: |
- |
| Applications or Use Cases: | Medical Devices |
| Product Status: | Active |
| Certification: | RoHS(EN50581),REACH |
| P |
| Application | Typical Working Voltage | Typical Working Current | Requirements for Electrode Snap Connector |
|---|---|---|---|
| EEG (Electroencephalography) | Microvolt level (±100–500 µV, up to a few mV) | Nanoampere level (≈ 0 mA, passive sensing) | Very low noise, high shielding, stable contact, low contact resistance |
| ECG / EKG (Electrocardiography) | Millivolt level (≈ 0.5–4 mV) | Microampere level (patient leakage current < 10 µA) | Reliable medical-grade contact, corrosion-resistant, low contact resistance |
| TENS (Transcutaneous Electrical Nerve Stimulation) | Typically 20–80 V peak (some devices up to ~100 V) | Typically 5–80 mA (limited for patient safety) | Must safely carry mA-level pulse current, good conductivity, strong mechanical strength |
| EMS / Massage Device | Typically 30–60 V peak | Typically 10–80 mA | Similar to TENS; requires stable snap connection, flexible cable, safe current capability |
